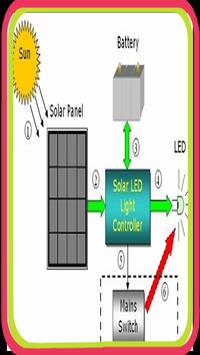

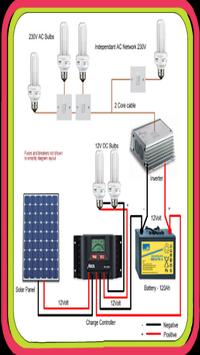

Description Solar panel mini wiring diagram

To add insight into solar electricity, we present several examples of wiring diagrams of solar electricity from a capacity of 2 kW, 4 kW to 8 kW, assuming the solar panel used is 100 watts / sheet and the sun shines for 5 hours a day. This example diagram can be used for systems with a voltage of 12, 24 or 48 volts, although the voltage base must be the same in all the main components in each application. for example if you use a 12 volts voltage, then the components are also 12 volts.
Example of a 2 kW system
Example of a 4 kW system:
Additional solar panels and batteries are needed.
Example of an 8 kW system:
For 8 kW, additional solar panels, batteries, and 2 inverters & 2 charge controllers are needed.
