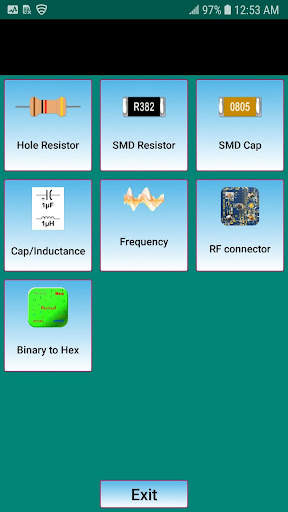

- We created this application to help electronic hobbyist easily work with SMD, and through hole resister and capacitor. In through hole resister, users can manually select color for each band, exactly the same position and layout of real resister. Every time users change a color the indication result will be updated, and this app currently support 4, 5, 6 color band standards. SMD resistor and capacitor can be operated in similar ways, each time users change a letter code, final result will be displayed. Especially, in Tantalum capacitor section, this app provide detail description about polarity, rating operation voltage, capacitance value and some additional information.

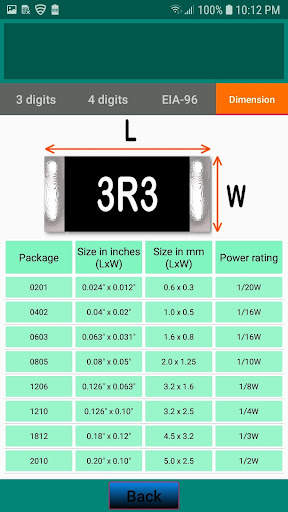

In this release version, we support some basic dimension for SMD resistor and capacitor packages.
- In the future, we are going to add much more popular size packages of SMD IC, transistor, diode, power regulator.
