Description MobilCAD 2d Pro

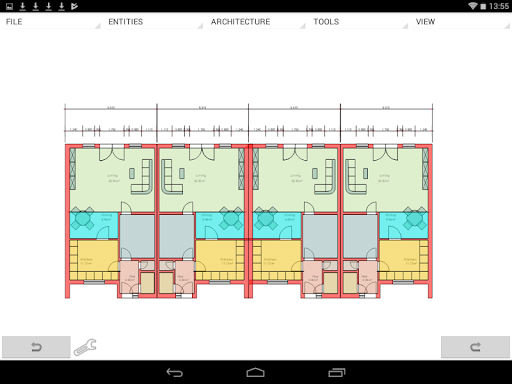

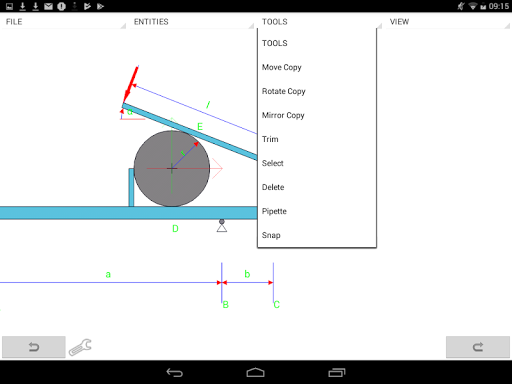

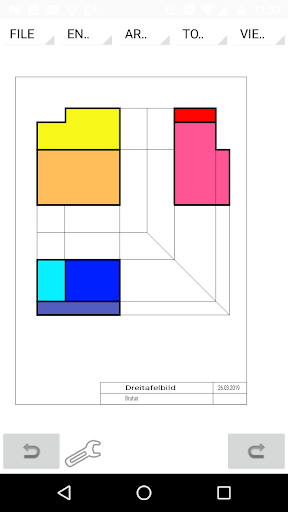

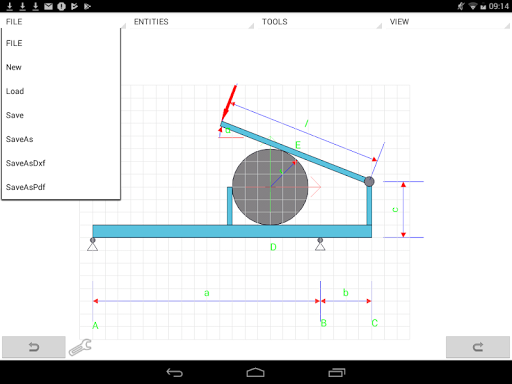

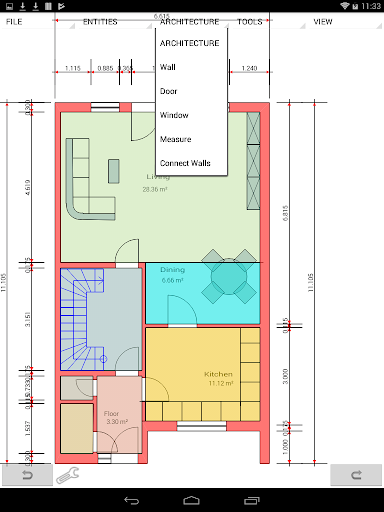

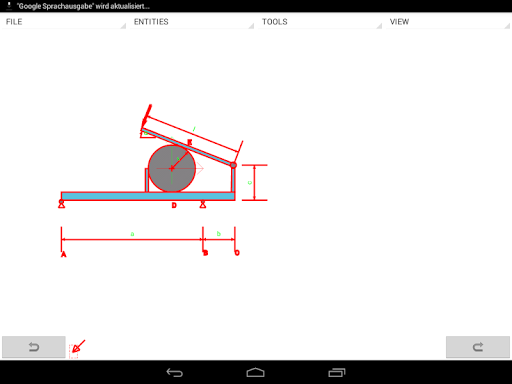

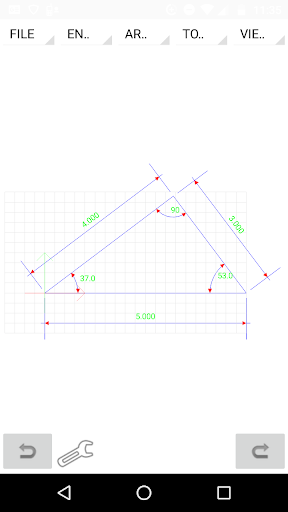

MobilCAD 2d Pro is an easy to use 2D CAD program with all the basic functions of a CAD program. The data elements line, circle, arc, dimension, text and symbols can be used to construct 2d drawings quickly and easily. These can be saved as a PDF or DXF file and distributed via Google Drive. MobilCAD 2d Pro is the ideal CAD program for students, and CAD beginners. With the Pro version you can select and edit any number of drawing elements. For a quick edit Griphandles are available for all elements. The dimensioning tool has been extended with radial, arc and angular dimension. For all dimension types there is the possibility of text overwriting. Snap is tangential and perpendicular possible and the polyline can contain any number of holes.
Tag:
DWG, PDF, scaffold, timer, architecture,
scaffolding, DXF, CAD, Layout
Show More
Less
Related Videos
What's New MobilCAD 2d Pro
Fixed problems on Android 10 and 11.
Information
ID:
com.cusoft.mobilcadpro
Category:
Updated:
2021-07-05
Version:
4.0.6
Requires:
Android 4.4 or later
Available on:
File size:
4.0MB
