Bluetooth 4 Relays Control Pro

Description of Bluetooth 4 Relays Control Pro

Here is a simple Android Bluetooth Remote Control Project for 4 Relays / Device using 89c2051 Micro-controller and HC-05 Bluetooth Module.
You can download circuit and hex file here http://www.hobbyprojects.com/bluetooth-device-control/

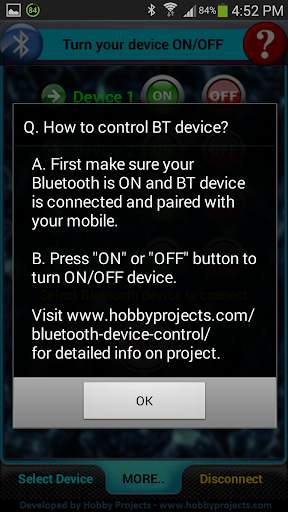

App Instructions:
1. First make sure your HC-05 Bluetooth Module is paired with your mobile. The default password for pairing is "1234" or "0000". Check the manual of Bluetooth module.

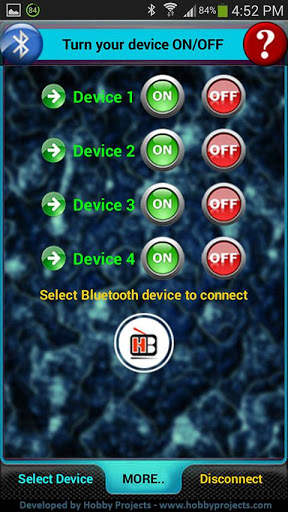

2. When you press ON button for Device 1 it sends the data "A" to Bluetooth Module connected with a circuit. Microcontroller turns ON the Device 1 relay when it detects "A".
3. When you press OFF button for Device 1 it sends the data "a" to Bluetooth Module connected with a circuit. Microcontroller turns OFF the Device 1 relay when it detects "a".
4. When you press ON button for Device 2 it sends the data "B" to Bluetooth Module connected with a circuit. Microcontroller turns ON the Device 2 relay when it detects "B".
5. When you press OFF button for Device 2 it sends the data "b" to Bluetooth Module connected with a circuit. Microcontroller turns OFF the Device 2 relay when it detects "b".
6. When you press ON button for Device 3 it sends the data "C" to Bluetooth Module connected with a circuit. Microcontroller turns ON the Device 3 relay when it detects "C".
7. When you press OFF button for Device 3 it sends the data "c" to Bluetooth Module connected with a circuit. Microcontroller turns OFF the Device 3 relay when it detects "c".
8. When you press ON button for Device 4 it sends the data "D" to Bluetooth Module connected with a circuit. Microcontroller turns ON the Device 4 relay when it detects "D".
9. When you press OFF button for Device 4 it sends the data "d" to Bluetooth Module connected with a circuit. Microcontroller turns OFF the Device 4 relay when it detects "d".
