Description SR Cables Free

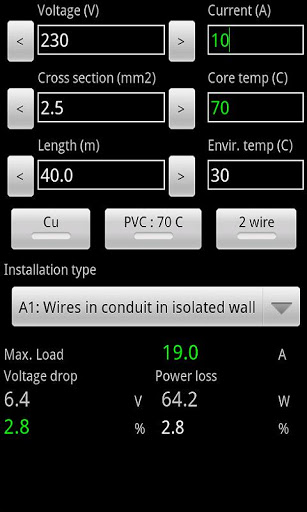

Quick calculation of allowed cable load and loss in cable.
Calculates maximum allowed load with compensation for environment temperatures between 10 - 60 °C.
Calculates voltage drop with compensation for core temperatures between 0 - 70/90 °C.

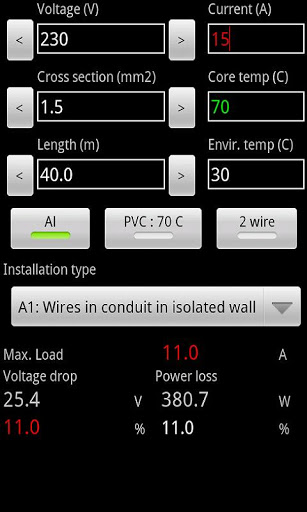

Indicates when voltage drop exceeds 4 % or when max load is exceeded.
Calculates Power loss in cable.
https://play.google.com/store/apps/details?id=net.roensberg.cables
Based on IEC 364 Tables
Cable types according to IEC tables 52-C1/C2/C3/C4 and C9/C10/C11/C12:
"Copper/aluminium", "PVC 70° C / XLPE 90° C" and "2 wire" / 3-phase" with quick toogle between types.
Installation forms according IEC table 52-B1:
A1: Wires in conduit in isolated wall

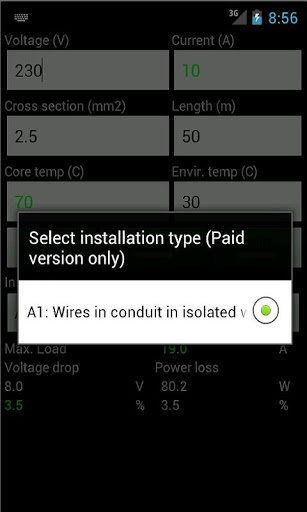

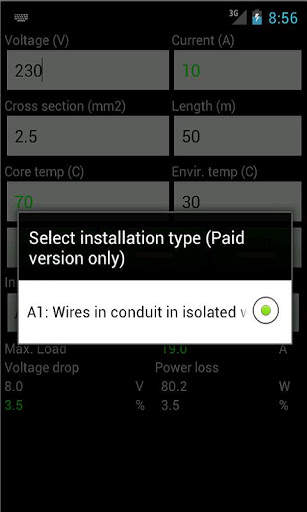

Paid version also includes:
A2: Cable in conduit in isolated wall
B1: Wires in conduit on wooden wall
B2: Cable in conduit on wooden wall
C: Cable on wooden wall
D: Cable in conduit in ground
E: Cable in free air
i.e normal installations excluding wires in free air
Quick select of normal used voltages: 5, 12, 24, 48, 48, 60, 110, 230, 400 and 600 V
Quick select of normal cross sections: 0.75, 1, 1,5, 2,5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300 mm2
