Structural Analysis 2D

Version: 1.18

3.7MB 10,000+ 3.0

Description Structural Analysis 2D

This intuitive and useful app for civil engineers , mechanical engineers, architects ,students to design 2D beam , frames. App use in the calculation method finite elements.
The application allows you to :

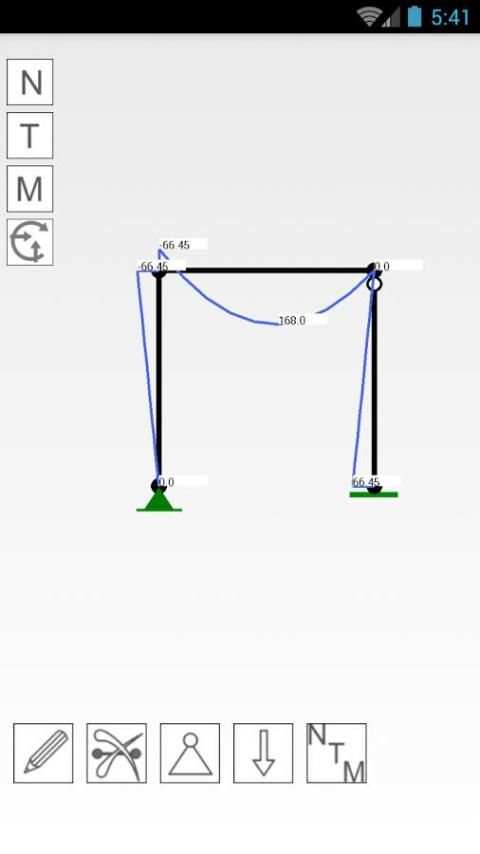

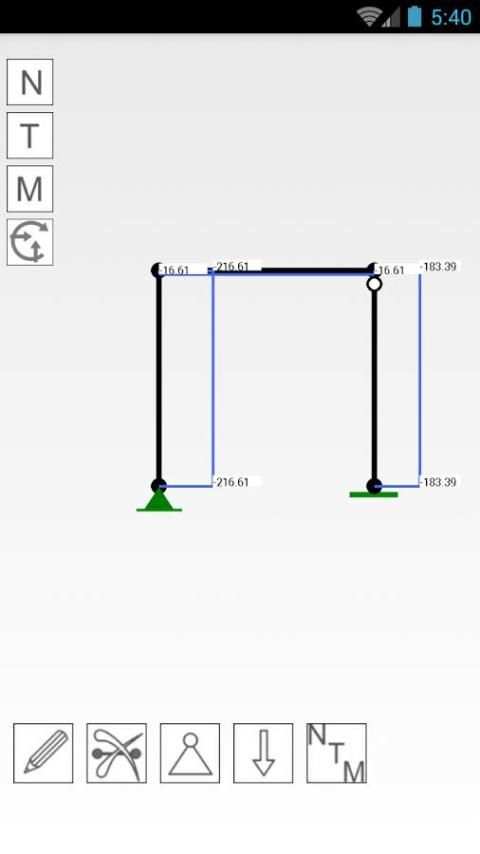

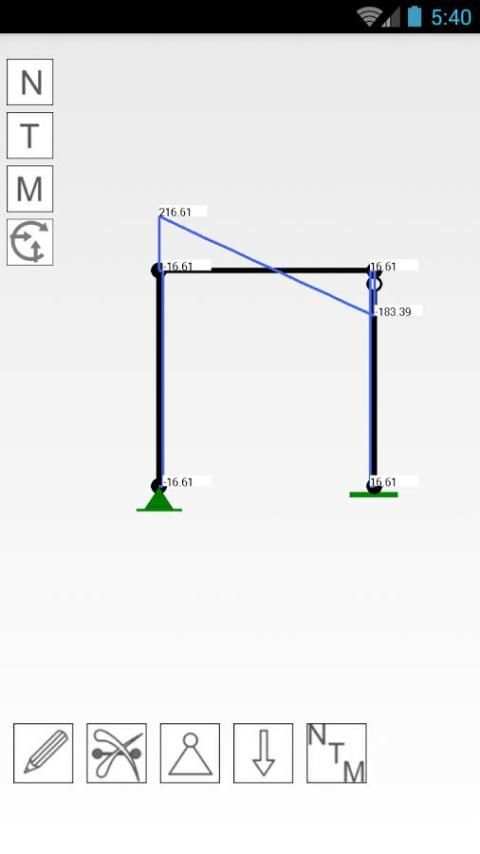

- Obtaining a graph along with the values of normal and shear forces and moments.
- Fixed and hinge connections at beam.

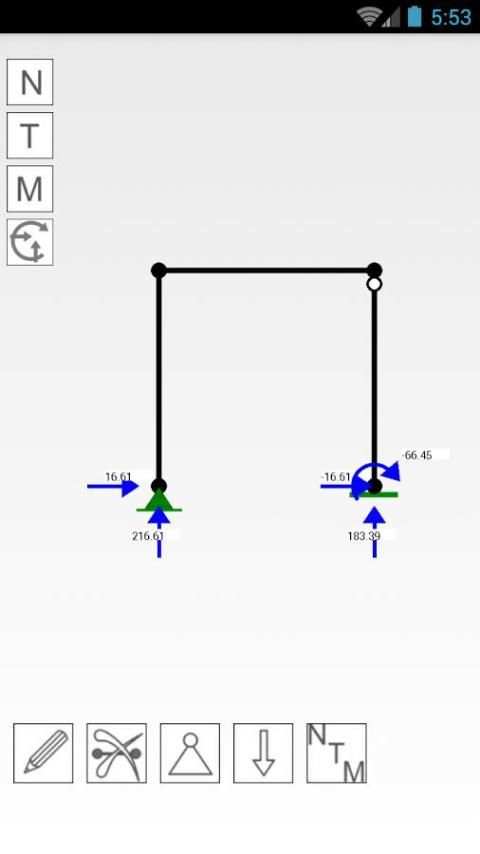

- Props hinged , sliding , hinged rigid unmovable and support .

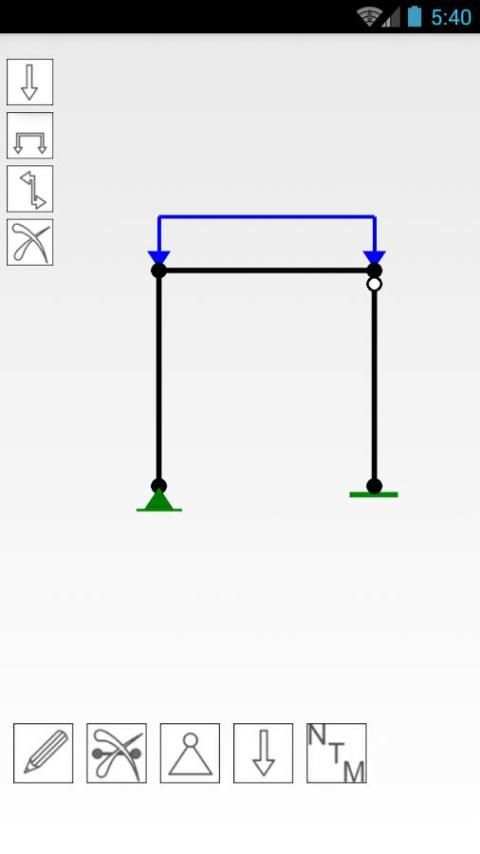

- Loads: concentrated force , distributed load , concentrated moment
