Description My Circuit (Logic)
My circuit is a logic circuit simulator app that let's you
create, design, invent, and simulate your own logic circuits easily!.
PRIVACY POLICY
https://www.freeprivacypolicy.com/privacy/view/fe95b7cb613b71dc4585e0c53bfdda95
IMPORTANT NOTES FOR USERS WITH ANDROID MARSMALLOW AND HIGHER
PLEASE allow My Circuit to access your device storage so that it can create or
load databases of your logic circuits in folder named 'My Circuit Files Folder' in
your device storage. If you disallow, My Circuit will malfunction.
FEATURES

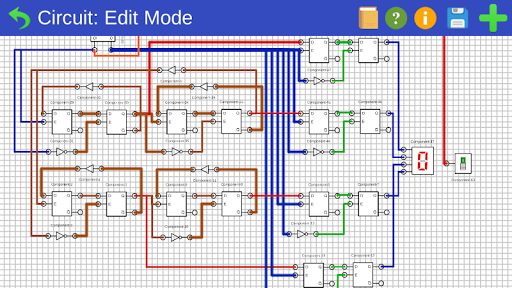

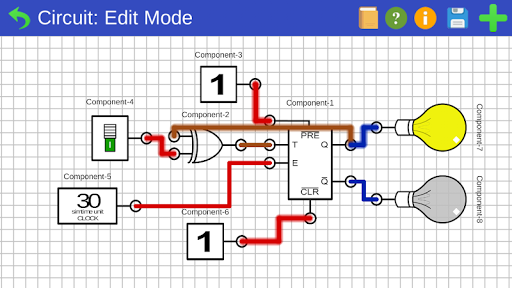

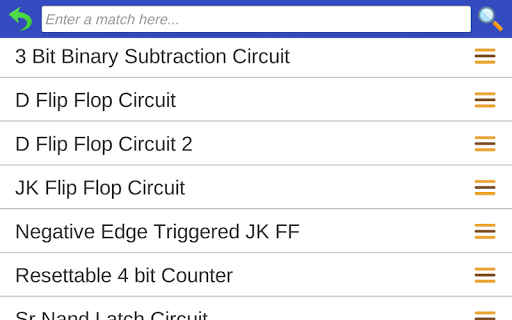

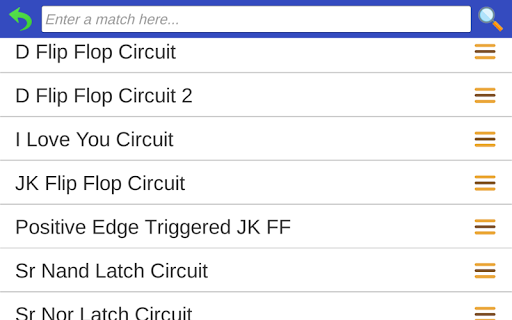

• Has 9 sample logic circuits.

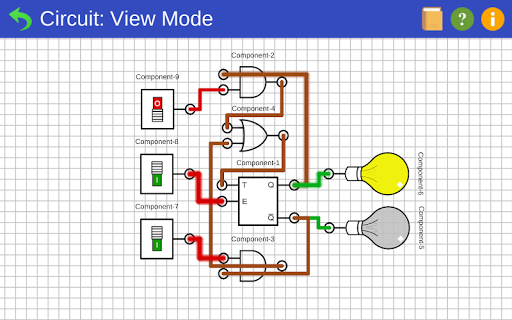

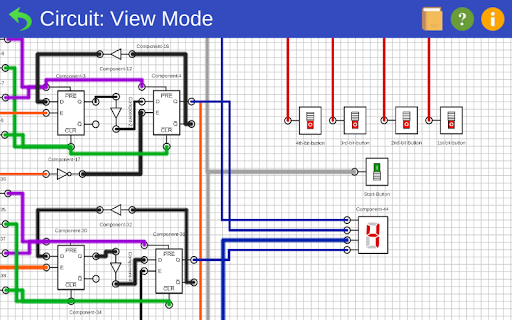

• Supports edit mode or view mode for logic circuits.
• Easy to Use
• Friendly Ads
(NEW!)

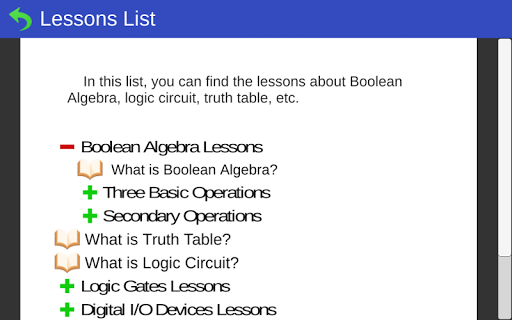

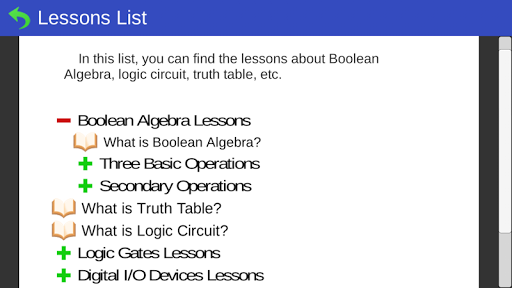

AVAILABLE LESSONS FOR YOU
‣ Boolean Algebra lessons
‣ Truth Table lesson
‣ Logic Circuit lesson
‣ Logic Gates lessons
‣ Digital I/O Devices lessons
LOGIC COMPONENTS FEATURES
• Rotatable and Nameable.
• Supports multiple connections to other logic components.
and also..
• Has 12 different types (which will increase soon!) which are :
‣ Inputs : Switch, High Constant Provider, Low Constant Provider, Clock (NEW!).
‣ Logic Gates : AND, NAND, NOR, NOT, OR, XOR, XNOR, BUFFER Gates.
‣ Outputs : Bulb, 4-Pin Display, Seven Segment Diplay (NEW!).
‣ Basic Flip Flops : SR NAND, SR NOR, D, JK, T Flip Flops.
‣ Flip Flops with PRE and CLR : SR NAND, SR NOR, D, JK, T Flip Flops.
WIRES FEATURES
• Has 2 different types
(Horizontal-Vertical-Horizontal Wire and Vertical-Horizontal-Vertical Wire).
• Supports 8 different colors
(Red, Blue, Green, Black, Orange, Violet, Brown and Gray).
• Adjustable middle part.
