Описание Beams

Beams is a mobile app that lets you do fast analysis and designs of beams or slabs of reinforced concrete. This app is really useful to the engineers and architectures. This app uses the ACI -318 -14.

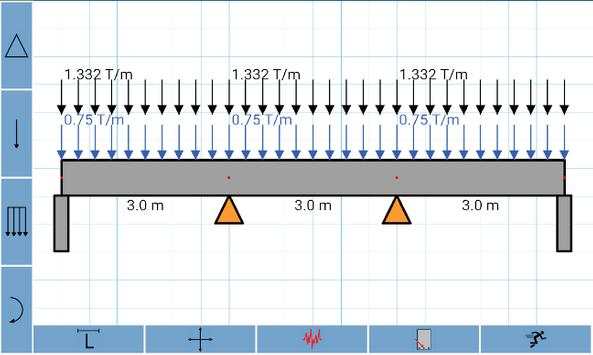

APPLIED FORCES
- Self weight load added automately.
- Point loads and distribuited loads.
- Difference between Live and Dead loads.
- Seimic moments.

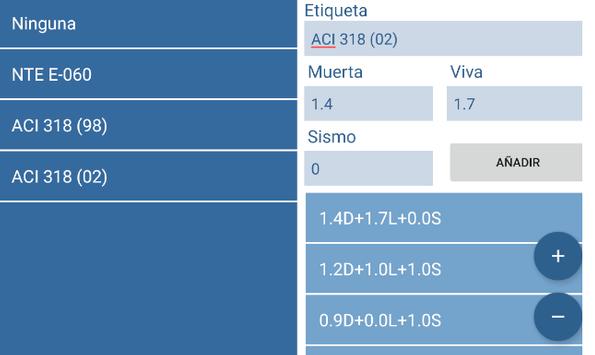

COMBINATION OF FORCES
- Enter your combinations and save them in the data base
MATERIALS AND SECTIONS
The analysis and design of beams depends in the sections and materials that you are going to use, so we have:

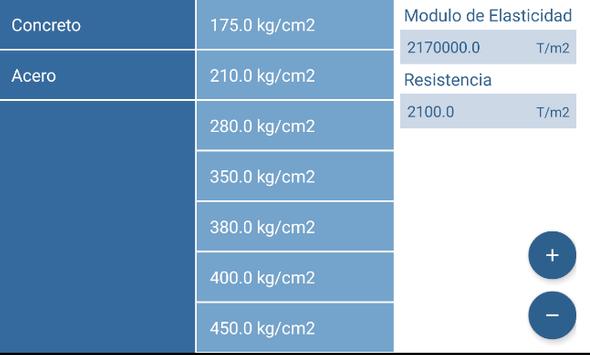

- Data base of concrete and steel.

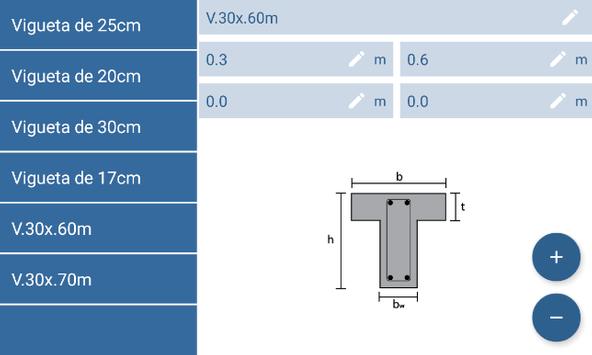

- Data base of beam and slab sections.
Where we can add:
- Properties of concrete and steel to the data base.
- New sections to the data base.
RESULTS

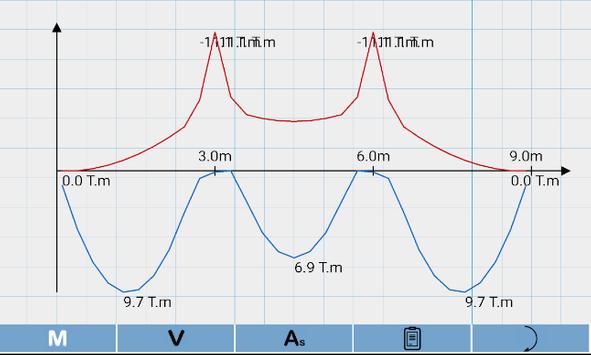

- Bending moments envelope diagram.
- Shear forces envelope diagram.

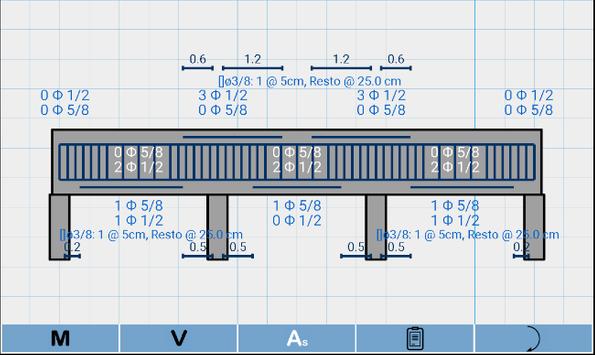

- Drawing of beam or slab of reinforced concrete with reinforcement bars.

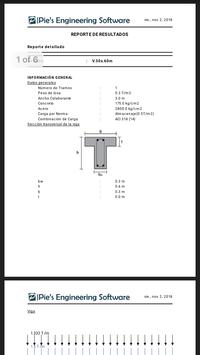

- PDF of results.
